SKU: 1000466
Categories: Solar Panel

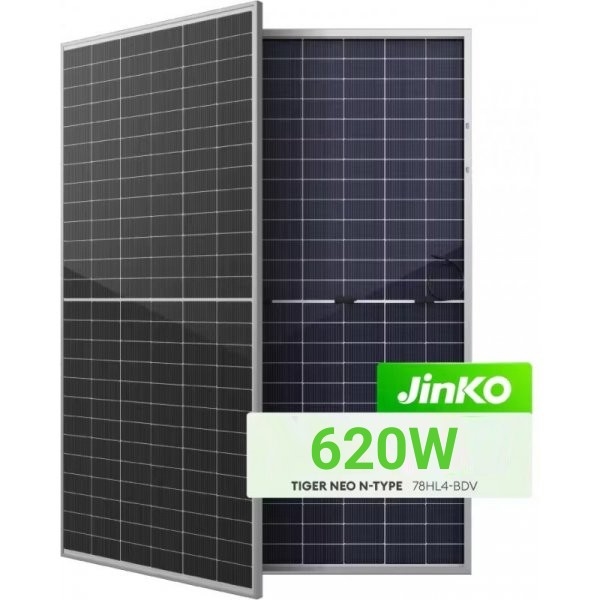

Jinko 620W Tiger Neo N-Type Solar Panel Bifacial. Designed with cutting-edge N-Type TOPCon technology and bifacial capabilities, this solar panel is engineered to maximize energy harvest, reduce your electricity bills, and provide a sustainable power solution for homes, businesses, and industrial projects across Bangladesh. With its robust construction and industry-leading warranties, the Jinko Tiger Neo 620W is an investment that promises exceptional returns for decades to come.
Below are the detailed technical specifications for the Jinko 620W Tiger Neo N-Type Bifacial Solar Panel (Model: JKM620N-78HL4-BDV)
| Parameter | Value |
|---|---|
| ELECTRICAL (STC) | |
| Maximum Power (Pmax) | 620 W |
| Maximum Power Voltage (Vmp) | 40.74 V |
| Maximum Power Current (Imp) | 15.22 A |
| Open Circuit Voltage (Voc) | 49.08 V |
| Short Circuit Current (Isc) | 16.08 A |
| Module Efficiency | 22.95% |
| TEMPERATURE & PERFORMANCE | |
| Operating Temperature | -40°C to +85°C |
| Temperature Coefficient (Pmax) | -0.29%/°C |
| Temperature Coefficient (Voc) | -0.25%/°C |
| Temperature Coefficient (Isc) | 0.04%/°C |
| Nominal Operating Cell Temperature (NOCT) | 45 ± 2°C |
| MECHANICAL | |
| Cell Type | N-type Mono-crystalline |
| Number of Cells | 132 (2×66) |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.4 kg |
| Front Glass | 2.0 mm, Anti-Reflection Coating |
| Back Glass | 2.0 mm, Heat Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| SYSTEM & RATINGS | |
| Maximum System Voltage | 1500V DC |
| Maximum Series Fuse Rating | 35 A |
| Power Tolerance | 0 ~ +3% |
| Bifacial Factor | 80 ± 5% |
| WARRANTY | |
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years |
| Annual Degradation | 0.40% |
The Jinko 620W Tiger Neo N-Type Bifacial Solar Panel is a high-performance module from the Tiger Neo series, designed to deliver superior efficiency and long-term reliability for residential, commercial, and industrial solar systems in Bangladesh.
Built with advanced N-type monocrystalline cell technology, this panel ensures higher energy yield, lower degradation, and improved performance even in challenging environmental conditions. Its bifacial dual-glass design allows energy generation from both front and rear sides, increasing overall power output significantly.
With a module efficiency of up to 22.95%, excellent temperature coefficients, and strong mechanical durability, this panel is ideal for maximizing ROI in solar installations across Bangladesh’s climate.
The panel also features SMBB (Super Multi Busbar) technology, HOT 2.0 technology, and enhanced resistance against PID (Potential Induced Degradation), ensuring consistent performance over decades.
