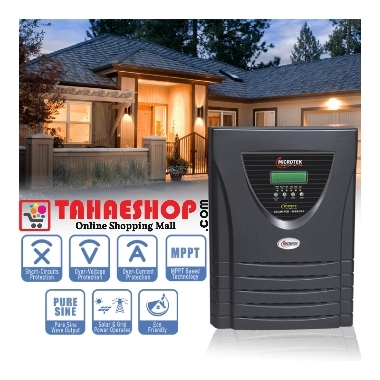

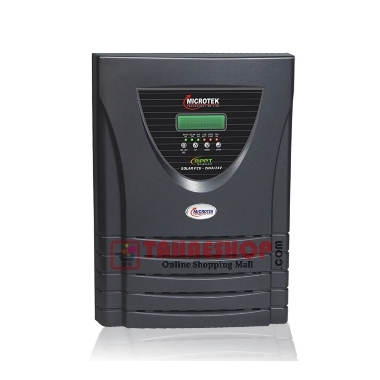

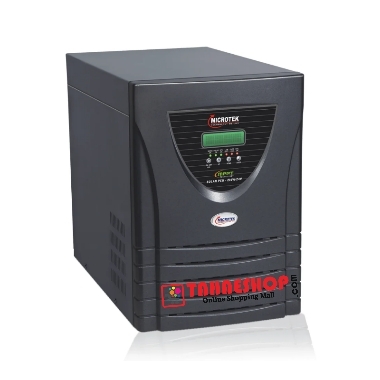

Microtek MPPT Solar PCU 2KVA/24V Pure Sine Wave Inverter

Brand: Microtek

৳44,000.00 ৳45,500.00

Short Description:

  • Model:- SOLAR MPPT PCU 2KVA/24V
  • Brand:- Microtek
  • Volt:- 24V.
  • Capacity:- 2KVA/24V
  • Rated Power:- 2000 Watts (AC)
  • Pure Sine Wave DSP Technically Output
  • Priority Selection Option for Solar / Battery / Grid
  • Maximum Solar Input Power(W) :- 2000 Watts
  • Maximum Solar Input Voltage (VOC) :- 60V ~ 170 V DC
  • Color:- As given picture.
  • Made in India.
  • Warranty:- 24 Month's warranty
  • Hotline: 01886279048 / 09639139148
(Out of stock)
Quantity

Microtek MPPT Solar PCU 2KVA/24V Pure Sine Wave Inverter Price In Bangladesh


Microtek MPPT BASED SOLAR PCU  is designed to utilize maximum use of Solar Energy. If there is excess of Solar Energy Generation from PV then it charges the Battery and simultaneously it supplies the Power to the Load.

While a solar PCU is similar to a solar inverter, there are a few differences. In a solar PCU, battery charging is very important during the day. Solar PCU controls the core and selects the charging source accordingly. Comes with a user that selects the energy-saving option to allow the user to choose the priority and save the bill. It also selects the AC output source from Solar or inverter or grid. In Energy Saver Mode first supplied to Solar, the battery is pre-charged and also supports the inverter to power electrical items. When the solar power stops, the PCU begins to use stored energy from the battery. When the stored power is used to a certain level, the inverter switches to the grid. The main focus here is to save on the cost of electricity bills. In a solar PCU, solar energy is very important, and in the absence of solar energy the energy comes from the electricity used. Solar PCUs are designed for maximum solar gain and therefore reduce energy costs.

Model MPPT BASED SOLAR PCU 2KVA / 24V
Capacity (Rated Power)2KVA / 24V
Capacity (Maximum PV Power support)2KWp

Key Features

  • MPPT based State-of-the-art Latest Technology for Optimum Performance.
  • Pure Sine wave Output to run all Sophisticated Appliances.
  • User-Friendly LCD Display.
  • Operates on both Solar Power as well as Grid Power.
  • Intelligent Sharing of Grid Current with Solar in case of Solar Energy Shortfall.
  • MPPT with Intelli Current Boost Technology.
  • Designed to give maximum benefit from Solar Energy & minimize your Electricity Bill.
  • Priority Selection Option for Solar / Battery / Grid
  • Peak Output Power handling capacity.
  • Intelli Overload sense with Short Circuit Protection.
  • Battery Deep Discharge Pickup Capability.
  • Grid Charging Enable-Disable setting from the Front Panel to provide “No Charging of Battery from the Grid”.

Technical Specification

Model  MPPT BASED SOLAR PCU 2KVA/24V
Capacity (Rated Power)2KVA/ 24V
Capacity (Maximum PV Power support)2KWp
Input
Input Voltage (Standard Range)100 V ~ 300 V
Input Voltage (Narrow Range)180V ~ 260 V
Nominal Input Battery Voltage36 V
Output
Output Frequency50 Hz ± 0.5 Hz
Output WaveformPure Sine Wave
Technology
Solar Charger TypeMPPT
Solar Panel VOC (Max)60V ~ 170 V DC
Max. Panel Current20 Amps
Low Battery Indication31.8 V ± 0.6 V DC
Low Battery Shut Down31.5 V ± 0.6V DC
  Safety Protections
ProtectionsLow Battery, Low Battery Shutdown, Output Overload, Output Short Circuit with Solar.
Operating Temp.0 to 40 Degree Celsius
Relative Humidity /Audible Noise0-95% non-condensing/Less than 55dBA (at 1M)
