Short Description:
SKU: 1000188
Categories: IPS & UPS Package

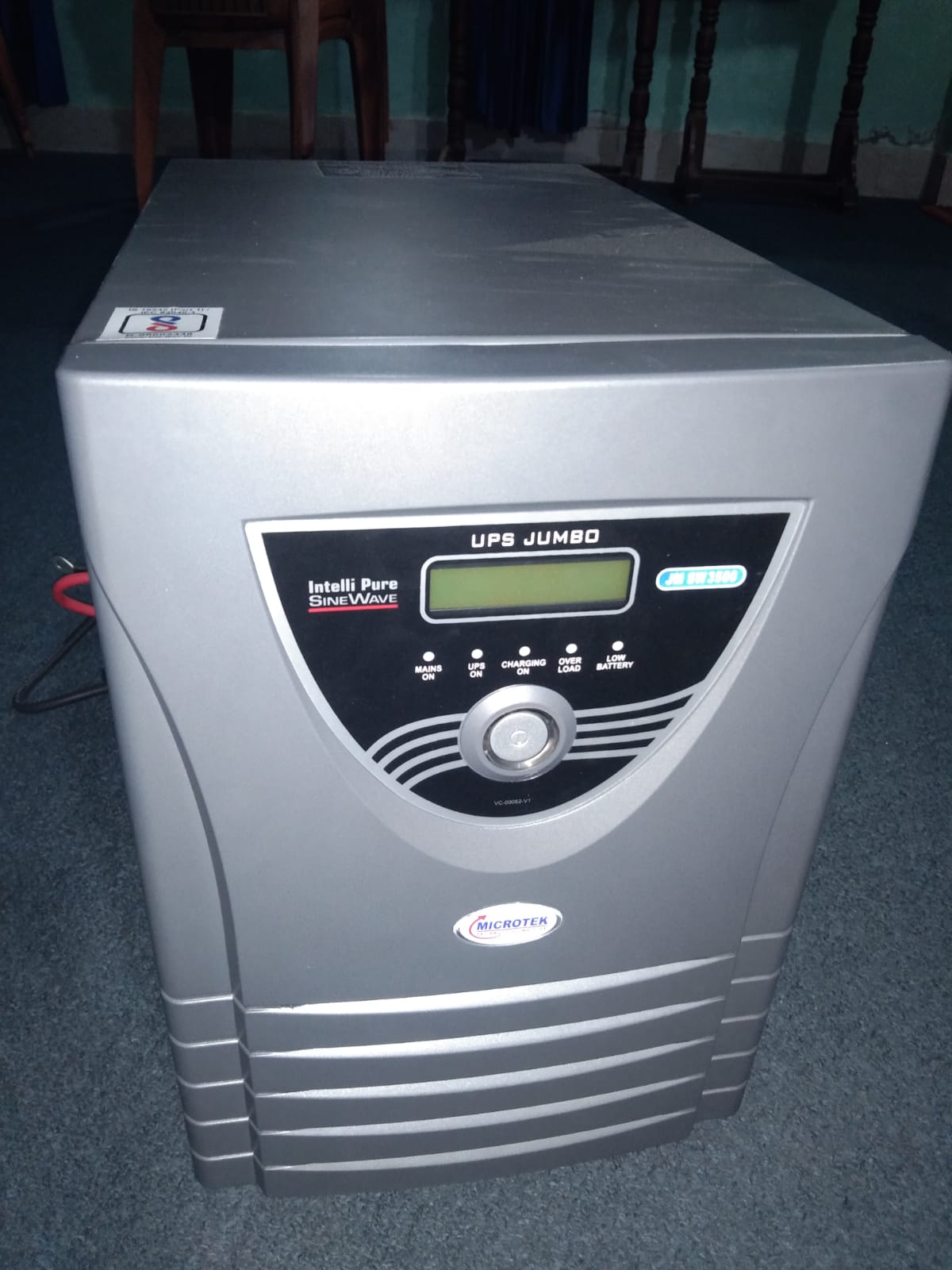

Microtek UPS JM SW 3500 is DSC Based Intelli Pure Sinewave Jumbo UPS Model for Small Offices and Home Applications which ensures Noiseless, Safe and Efficient Performance. It is DSC based Intelligent Control Design using latest state-of-the art Technology. It also comes with Additional Features like Battery Selection Mode Switch for selecting Tubular, Standard & Local Battery for Quick Charging and Longer Battery Life with Enhanced Backup.
| Rated Capacity | 3.2 KVA / 36V |
| Output Power | 2560 Watts |
| Battery | 3 Battery System (36 VDC) |
| Wave Form | Pure Sine Wave |
| Warranty | 2 Year |
KEY FEATURE
LED Display Indications
Technical Specification
| INPUT | |
| INPUT VOLTAGE (Standard range) | 100V ~ 280V |
| INPUT VOLTAGE (Narrow Range) | 180V ~ 265V |
| OUTPUT | |
| OUTPUT VOLTAGE (Main Mode) | Same as INPUT |
| OUTPUT VOLTAGE (UPS Mode) | 220V + 10% |
| OUTPUT WAVE FROM (Main Mode) | Same as INPUT |
| OUTPUT WAVE FROM (UPS Mode) | Pure Sine Wave |
| CHANGE-OVER | |
| SWITCHOVER (Mains>UPS / UPS>Mains) | AUTOMATIC |
| UPS TRANSFER TIME | < 15 msec |
| TECHNOLOGY | |
| DESIGN | Micro Controller Based Design |
| BATTERY CHARGING CURRENT | 17 Amps ± 3 Amps |
| UPS OVERLOAD / UPS SHORT CIRCUIT | ≥110% / ≥ 300% |
| BROWNS ON MAINS VOLTAGE | 100V + 10V |
| EFFICIENCY (BATTERY MODE) | >80% |
| AUTO RESET FEATURE | YES |
| INPUT DC RANGE | 31.5 V ~ 42.6 V |
| AIR CONDITIONER TDR | Upto 1.0 Tons |
